Oxygen Cylinder Transfill Adapter w/Gauge and Yoke Accessory
CGA-540 TO CGA-540 with a CGA 870 to 540 accessory yoke adapter  for trans-filling portable oxygen tanks from large H tanks at 2200 PSI.

Features:
        This adapater fills cylinders with either CGA-540 or CGA-870 valves.

        All parts are rated at 3000 PSI and are cleaned for oxygen service
        Ends are CGA-540 nut and nipple
        Pigtail is a 2 ft. high-pressure braided stainless steel flexible hose
        Yoke adapter fits portable cylinders with a CGA 870 post valve

        Longer stainless steel hose available upon request*


 .

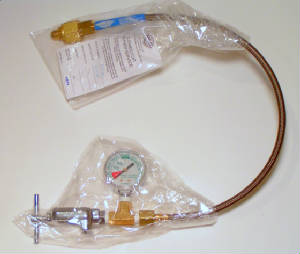

Oxygen Cylinder Transfill Adapter w/Gauge
CGA-540 TO CGA-870  for trans-filling portable oxygen tanks from large H tanks at 2200 PSI.

Features:
        All parts are rated at 3000 PSI.
        All parts are new and cleaned for oxygen service.
        Pigtail is a 2 ft. high-pressure braided stainless steel flexible hose
        Yoke adapter fits portable cylinders with a CGA 870 post valve


        Longer stainless steel hose available upon request*

 n

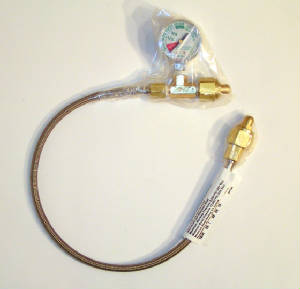

Oxygen Cylinder Transfill Adapter CGA-540 w/ Gauge
CGA-540 TO CGA-540  for trans-filling portable oxygen tanks from large H tanks at 2200 PSI.

Features:
        All parts are rated at 3000 PSI.
        All parts are new and cleaned for oxygen service.
        Pigtail is a 2 ft. high-pressure braided stainless steel flexible hose.
        Nut & nipple ends fit CGA-540 connections.

v       Longer stainless steel hose available upon request*


 .

Oxygen Cylinder Transfill Pigtail
CGA 540 to CGA 540 connector for transfilling portable oxygen tanks.

 .

Oxygen Cylinder Yoke Style Transfill Adapter
CGA 870 to CGA 540 yoke style adapter for filling cylinders with a CGA 870 post valve from larger H tanks with CGA 540 connections.

Features:
           Chrome plated brassl. Tested and approved to 3000 PSI


Multi-Cylinder Oxygen Refilling Station

Please see "Transfill Systems" page for a comple list of all of our Refilling Stations

This high-performance Oxygen Cylinder Refilling System is designed for filling one to three cylinders at a time.  Three hoses with CGA-540 nut & nipple or CGA-870 yoke adapter termination from either two-foot or four-foot hoses.  Each fill port has an in-line needle valve (3000 PSI) to allow individual flow control.  On/off valve at manifold supply line for convenience. Safety gauge on manifold reads pressure to lines.  All components are rated to a minimum of 3000 PSI.

• 24" supply side pigtail terminated w a CGA-540 female nut & nipple.
• 4-port annodized aluminum manifold
• 3 oxygen supply hoses (4000 PSI) - supplied either in 2 or 4 ft. length
• 4000 PSI gauge
• In-line pressure release valve for the supply line
• Oxygen supply hoses are supplied with a CGA-540 nut & nipple termination (female).
• Option:  CGA-540 to 870 yoke adapter for supply hose (additional cost)

 Portable Oxygen Cylinder Filling System (90 Cu.Ft. Tank with Adapter)

Use this lightweight 90 Cu.Ft. cylinder with transfill adapter to conveniently fill smaller portable oxygen cylinders.

• 90 Cu.Ft. aluminum cylinder with standard CGA-540 valve with handle.
• Cylinder specs: 2550 liters,  34 lbs., 7.25" diam., 36" tall, 2216 PSI or 153 bar, delivered empty
• 2 ft. high-pressure braided stainless steel flexible hose.  (Longer hoses available)
• 1/4" NPT CGA-540 connection end, and standard CGA-870 yoke style connection end.
• Adapter may be provided with 1/4" NPT CGA-540 ends + GA-870 yoke adapter.
• All parts new and cleaned for oxygen service, rated to 3000 PSI.

SMALLER TANK IS SHOWN FOR ILLUSTRATIVE PURPOSES AND IS NOT INCLUDED WITH SYSTEM.
